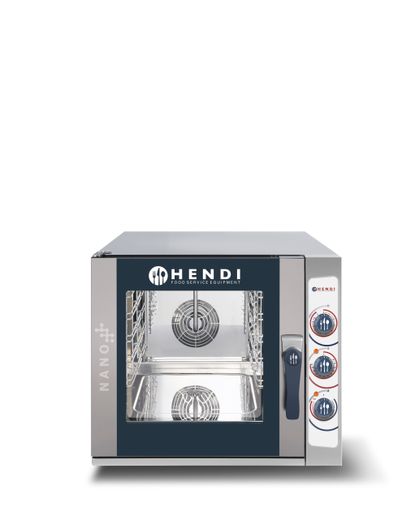

Convection steam oven NANO 5x GN2/3, HENDI, 400V/5400W, 699x774x(H)620mm
Item no.: 223307
Brand:
- Super easy to control temperature, time and humidity thanks to the large knobs
- Temperature can be set up to 280˚C and steam in 10 levels
- Easy to clean thanks to the removable inside glass pane and tray guides
- Chamber equipped with a drain in the bottom
- Timer can be set up to 120 minutes, or at continuous operation
Product description
Housing and chamber made of high-quality stainless steel.
Mechanical water injection regulation, steam is generated by spraying water on the heaters.
Steam level is controllable and the oven maintains the set level.
Fitted with a direct water connection: ¾”, max 30°C, 150-200 kPa (2 bar), only use filtered and softened water.
Chamber equipped with a drain in the bottom.
The fan motor has double bearings and 250W of power, with auto reverse and two speeds (1400/2800 rpm).
Each powerful fan has 6 blades, ideally distributing the airflow in the chamber and preventing turbulence.
The door is easy to open and lock with the large door handle.
Door contains two tempered glass panes, the outside glass remains cool to the touch thanks to gravity ventilation.
The removable door gasket is fitted to the chamber to ease cleaning and replacement.
Chamber has halogen lighting, and the tray guides are removable.
Functions
- Timer can be set up to 120 minutes, or at continuous operation
- Temperature can be set up to 280˚C
- Steam can be set in 10 levels.
Capacity of 5x GN2/3 (325x354cm), guides are placed 67 mm apart. With 1 reversible fan. Weight: 55 kg.
Capacity of 5x GN2/3 (325x354cm), guides are placed 67 mm apart. With 1 reversible fan. Weight: 55 kg.
Housing and chamber made of high-quality stainless steel.
Mechanical water injection regulation, steam is generated by spraying water on the heaters.
Steam level is controllable and the oven maintains the set level.
Fitted with a direct water connection: ¾”, max 30°C, 150-200 kPa (2 bar), only use filtered and softened water.
Chamber equipped with a drain in the bottom.
The fan motor has double bearings and 250W of power, with auto reverse and two speeds (1400/2800 rpm).
Each powerful fan has 6 blades, ideally distributing the airflow in the chamber and preventing turbulence.
The door is easy to open and lock with the large door handle.
Door contains two tempered glass panes, the outside glass remains cool to the touch thanks to gravity ventilation.
The removable door gasket is fitted to the chamber to ease cleaning and replacement.
Chamber has halogen lighting, and the tray guides are removable.
Functions
- Timer can be set up to 120 minutes, or at continuous operation
- Temperature can be set up to 280˚C
- Steam can be set in 10 levels.
Capacity of 5x GN2/3 (325x354cm), guides are placed 67 mm apart. With 1 reversible fan. Weight: 55 kg.
Capacity of 5x GN2/3 (325x354cm), guides are placed 67 mm apart. With 1 reversible fan. Weight: 55 kg.
Parameters
Technical data
Voltage:
400
Timer unit:
Minutes
Water connection:
Yes
Probe:
No
Programmable:
No
Electrician needed:
Yes
Timer:
120
Length (mm):
699
Net weight (kg):
49.2
Power (input) (W):
5400
EAN:
8711369223307
Control panel:
Analog
Capacity value:
5
Capacity unit:
Trays
Height (mm):
620
Sizes that fit:
GN 2/3
Number of fans:
1
Temp range to (°C):
260
Materials:
Stainless steel
Heating element:
Heater
Oven chambers :
1
Protections:
Overheat protection
Tray support spacing (mm):
67
Width (mm):
774
Unit temperature:
Celsius
Brand:
HENDI
Marketing Packed per:
1
GS1 Packaging type:
Crate
GS1 Packed per:
1
Interior material:
Stainless steel
